Superfast 150 Tabletop UV Laser Marker

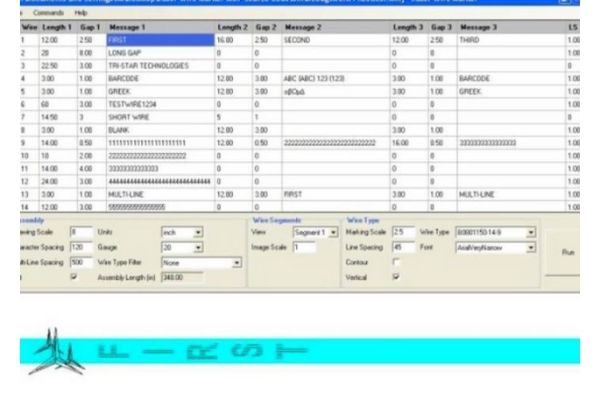

The M-100L FG-TT Superfast 150 from Tri-Star Technologies Inc USA, is a fully automatic, turnkey wire marking system that utilizes a UV solid state laser with an integrated high speed scanner. User friendly software allows unlimited font selection (any TrueType font for any language) as well as full graphics capabilities (pictures, logos, barcodes, etc.). The M-100L FG-TT Superfast 150 supports both vertical and horizontal text orientation, programmable message spacing, 3 separate zones of print with variable separation spaces, and source and destination coding on wire ends
Certified by AIRBUS and BOIENG.


•Easy (13 sec) loading unloading
•Dual stepping motor pulling for accurate marking and precise length cutting of round wires and twisted cables alike
•Meets MIL-W-5088L, AS-5088-L, as well as SAE ARP5607 (Legibility of Print).
•Qualified per the BAC5152 spec.
•Pneumatic cutter
•Powered coil pan
•Single coil motorized wire prefeed
•Wire throughput: up to 300 ft/min depending on font size.
•Wire gauges: from 26 to 4 (.75mm to 10mm)
•Wire and cable jacket materials: PTFE, TFE, PEF, ETEF, XL-ETFE, etc.
•Laser markable wire types: BMS 13-48, BMS 13-60, Raychem spec 55, AS22759/16-19, 32-46, 80-92, etc.
•Integrated laptop computer
•Microsoft Windows™ control application


Industries Served / Applications :

Aerospace, Defence, Military, Automotive, Industrial Automation, Medical, Solar Photovoltaic, Railways, E-Mobility, Renewable Energy, Telecommunication
