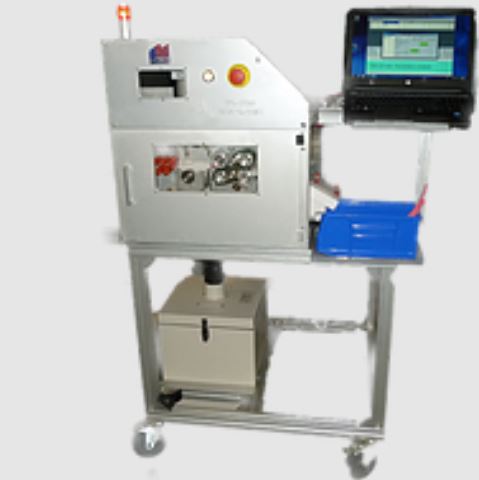

M-100L-FG-ST UV Laser Tube Marker


The M-100L-FG-ST from Tri-Star Technologies is a fully automatic, turnkey marking system that utilizes a UV solid-state laser with an integrated high-speed scanner. User-friendly software allows unlimited font selection (any TrueType font for any language) as well as full graphics capabilities (pictures, logos, barcodes, etc.). The M-100L-FG-ST supports both vertical and horizontal text orientation and multiple line printing.


• Easy (13 sec) loading/unloading
• Dual stepping motor pulling for accurate marking and precise length cutting of round wires and twisted cables alike
• Meets MIL-W-5088L, AS-5088-L, as well as SAE ARP5607 (Legibility of Print).
• Qualified per the BAC5152 spec.
• Pneumatic cutter
• Tubing throughput: up to 50 ft/min depending on font size.
• Tubing size up to 3-inch width, larger sizes available, consult factory
• Integrated laptop computer
• Microsoft Windows™ control application

Industries Served / Applications :

Aerospace, Defence, Military, Automotive, Industrial Automation, Medical, Solar Photovoltaic, Railways, E-Mobility, Renewable Energy, Telecommunication
